Networked industrial desktop labeller designed to meet the diverse needs of industrial professionals
- Barcode Printing Function
- High Quality Labels with Auto-Lamination
- Fast Print Speed

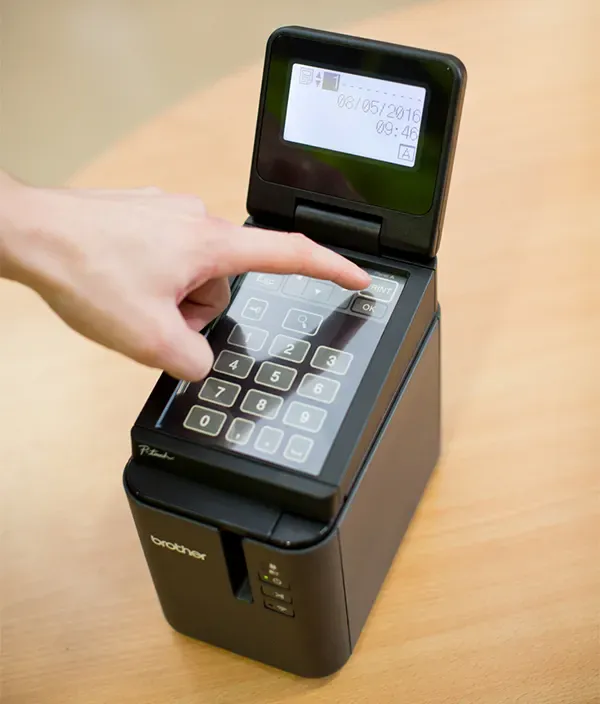

- Optional Touch Panel with backlit LCD display to print custom labels without the use of a PC
- Software Development Kits available for easy system integration
- USB, Wired and wireless connectivity and optional Bluetooth interface
Thông Tin
Tổng Quan

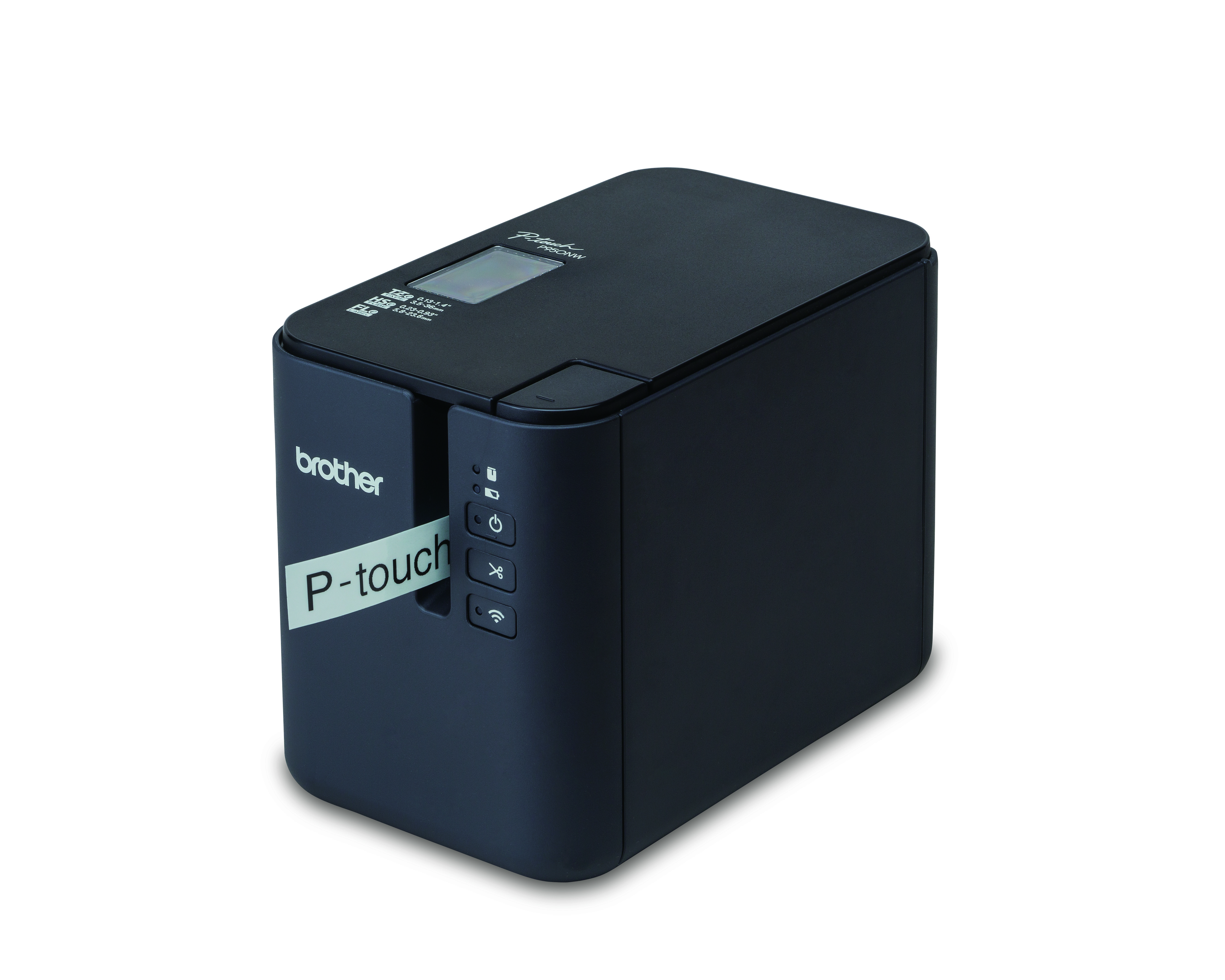

The professional label printer designed for any labelling task
With a wide range of colour combinations and tape widths up to 36mm, near borderless printing and high speed/high resolution print capabilities, the PT-P950W is ideal for facilities management, document archiving, asset labelling and creating on-demand labels whenever and wherever required.
Wired and wireless connectivity
This compact desktop label printer can be connected to your PC or Mac using a USB cable, or connected to your wireless network to share between multiple users or be placed in a more convenient location away from your computer.

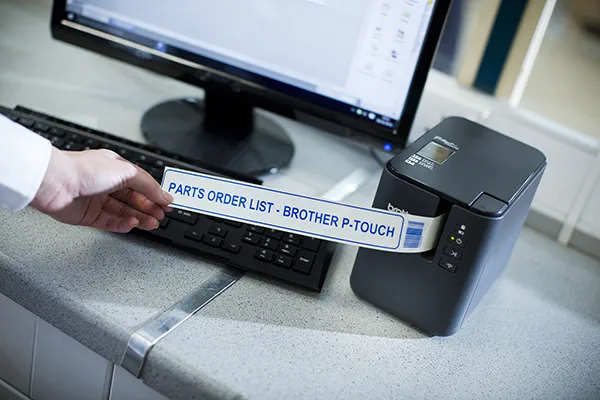

Advanced cutter with easy-peel function
The advanced cutter can produce one long strip of labels that can be easily peeled one-at-a-time, and ensures labels are kept in the correct order.

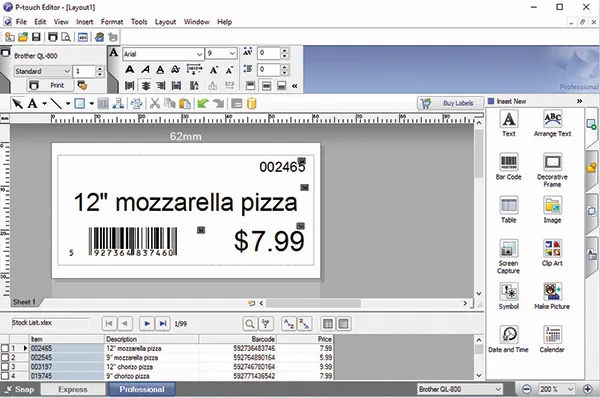

Industrial label design software for PC and Mac
The PT-P950W uses P-touch Editor label design software for Windows and Mac. It boasts advanced features normally found in expensive desktop applications such as industry standard 1D and 2D barcodes, import of logos and other graphics, and allows you to use the fonts installed on your computer. Link to a Microsoft Excel® spreadsheet or .csv file to print multiple labels quickly and efficiently.

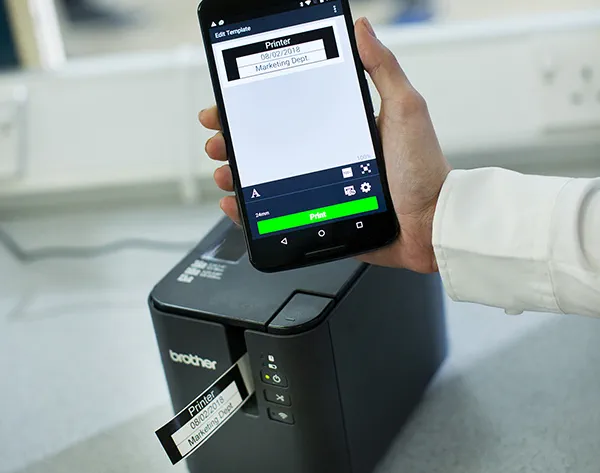

Print from smartphones or tablets
Instantly create and print simple labels from your smartphone or tablet without needing to fire up your PC. The Brother iPrint&Label app wirelessly connects to the PT-P900W to let you design and print labels from your iOS or Android device. Or if you need to identify electrical and data cabling and equipment, use the specialised Brother Cable Label Tool app to print labels for wrapping around cables or for sticking to faceplates, electrical distribution boards and other specialist equipment.
Include label printing as part of your solution
Software and app developers can use various software development kits for Microsoft Windows, iOS and Android devices to enable label printing from within your own software and apps. This makes the PT-P900W ideal to integrate into various solutions where durable labels are required.

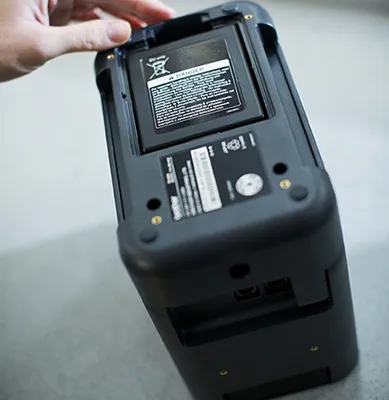

Print wherever and whenever required
There are situations where AC power may not be available, such as on construction sites, or if the label printer needs to be used on a portable trolley. The PT-P900W has an optional battery base and rechargeable lithium-ion battery pack to enable label printing wherever and whenever required.
P-touch laminated labels - tested to extreme
Brother TZe tape cassettes come in a wide variety of widths and colours, and include specialist tapes such as strong adhesive, flexible ID (for wrapping around cables or creating flag labels), tamper evident and security tapes. These laminated tapes are incredibly durable, and are designed and tested to withstand extremes in temperature, sunlight, moisture, abrasion and chemicals.
Các Thông Số Kĩ Thuật
Basic Specs
Bàn Phím
Not available
Màn Hình
Yes (optional Touch Display Unit PA-TDU-003 is required)
Loại Phương Tiện Truyền Thông
TZe Tape (Laminated), HGe Tape
Các Kích Thước Băng Dính Có Sẵn
3.5, 6, 9, 12, 18, 24, 36mm
Kích Thước Sản Phẩm (Rộng x Sâu x Cao)
118 mm × 192 mm × 146 mm
Trọng lượng
1.51 kg
Tốc Độ In
60mm/sec
Bảo Hành
Bảo hành 12 tháng tại trung tâm bảo hành
In Ấn
Độ Phân Giải
360 dpi
Số Dòng Có Thể In
17 Lines
Số Ký Tự Có Thể In
826
Số Ký Hiệu
618
Mã Vạch
21 barcode protocols on P-touch Editor 5.1
Đánh Số
Yes
Connectivity
Connectivity
USB, Wireless LAN
Phương Tiện Truyền Thông
Chiều Rộng Băng Dính Tối Đa
Up to 36 mm
Chiều rộng cuộn tối đa
3.5mm up to 36mm
Chức Năng
Dao Cắt
Auto and half cutter
In Đa Khối
PC
In Bản Sao
Yes (1-999)
In Phản Chiếu
N/A
Xem Trước
No
Bộ Nhớ
Lưu Trữ Tập Tin
99 files
Nguồn Điện
Nguồn Điện
AC Adapter (Included), Rechargeable Li-ion battery and base (Optional)
Tự Động Tắt Nguồn
Yes
